MariTox Marine Flame Retardant Power & Control Cables

MTX400 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Power & Control Cables (Multicore)

Armoured Flame Retardant Power & Control Cables (Multicore)

Application
These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free.

Standards
 IEC 60092-350/351/353/359
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

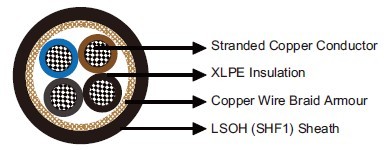

Construction
 Conductors: Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.
 Insulation: XLPE.
 Inner Covering: Lapping.
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
Two cores: Blue, Brown.
Three cores: Brown, Black, Grey.
Four cores: Blue, Brown, Black, Grey.
Five cores: Blue, Brown, Black, Grey, Black.
Multi cores: White with black numbers
With yellow/green (optional)
Two cores + earth (3G): Yellow/green, Blue, Brown.
Three cores + earth (4G): Yellow/green, Brown, Black, Grey.
Four cores + earth (5G): Yellow/green, Blue, Brown, Black, Grey.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight
MTX400 1RMZ1-R Multicore Armoured 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

Part No.

Construction
No. of cores×Cross
section(mm²)

Nominal Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal Overall Diameter mm

Nominal Weight kg/km

MTX400-1RMZ1-R-2C1.5

2×1.5

0.7

1.1

9.3

120

MTX400-1RMZ1-R-2C2.5

2×2.5

0.7

1.1

10.1

150

MTX400-1RMZ1-R-2C4

2×4

0.9

1.2

12.2

195

MTX400-1RMZ1-R-2C6

2×6

0.9

1.2

13.7

275

MTX400-1RMZ1-R-2C10

2×10

0.9

1.3

15.7

385

MTX400-1RMZ1-R-2C16

2×16

0.9

1.4

18.4

595

MTX400-1RMZ1-R-2C25

2×25

0.9

1.5

21.3

820

MTX400-1RMZ1-R-2C35

2×35

0.9

1.5

23.9

1140

MTX400-1RMZ1-R-2C50

2×50

1.0

1.5

26.7

1500

MTX400-1RMZ1-R-3C1.5(3G1.5)

3×(G)1.5

0.7

1.1

9.8

145

MTX400-1RMZ1-R-3C2.5(3G2.5)

3×(G)2.5

0.7

1.1

10.7

180

MTX400-1RMZ1-R-3C4

3×4

0.9

1.2

12.9

245

MTX400-1RMZ1-R-3C6

3×6

0.9

1.3

14.7

345

MTX400-1RMZ1-R-3C10

3×10

0.9

1.3

16.6

490

MTX400-1RMZ1-R-3C16

3×16

0.9

1.4

19.5

755

MTX400-1RMZ1-R-3C25

3×25

0.9

1.6

22.7

1095

MTX400-1RMZ1-R-3C35

3×35

0.9

1.6

24.9

1340

MTX400-1RMZ1-R-3C35S

3×35 (sector shaped)

0.9

1.6

22.0

1320

MTX400-1RMZ1-R-3C50

3×50

1.0

1.6

27.1

1750

MTX400-1RMZ1-R-3C50S

3×50 (sector shaped)

1.0

1.6

24.8

1820

MTX400-1RMZ1-R-3C70S

3×70 (sector shaped)

1.1

2.0

29.7

2575

MTX400-1RMZ1-R-3C95S

3×95 (sector shaped)

1.1

2.1

33.1

3435

MTX400-1RMZ1-R-3C120S

3×120 (sector shaped)

1.2

2.2

36.0

4070

MTX400-1RMZ1-R-3C150S

3×150 (sector shaped)

1.4

2.4

40.9

5435

MTX400-1RMZ1-R-4C1.5(4G1.5)

4×(G)1.5

0.7

1.1

10.5

170

MTX400-1RMZ1-R-4C2.5(4G2.5)

4×(G)2.5

0.7

1.2

11.8

225

MTX400-1RMZ1-R-4C4

4×4

0.9

1.3

14.7

335

MTX400-1RMZ1-R-4C6

4×6

0.9

1.3

16.0

425

MTX400-1RMZ1-R-4C10

4×10

0.9

1.4

18.3

625

MTX400-1RMZ1-R-4C16

4×16

0.9

1.5

21.5

935

MTX400-1RMZ1-R-4C25

4×25

0.9

1.6

24.4

1345

MTX400-1RMZ1-R-4C35

4×35

0.9

1.7

27.5

1715

MTX400-1RMZ1-R-4C35S

4×35 (sector shaped)

0.9

1.7

24.3

1700

MTX400-1RMZ1-R-4C50

4×50

1.0

1.6

29.9

2400

MTX400-1RMZ1-R-4C50S

4×50(sector shaped)

1.0

1.6

27.3

2300

MTX400-1RMZ1-R-4C70S

4×70(sector shaped)

1.1

2.1

32.8

3250

MTX400-1RMZ1-R-4C95S

4×95(sector shaped)

1.1

2.2

37.3

4390

MTX400-1RMZ1-R-5C1.5(5G1.5)

5×(G)1.5

0.7

1.2

11.7

205

MTX400-1RMZ1-R-5C2.5(5G2.5)

5×(G)2.5

0.7

1.2

12.8

265

MTX400-1RMZ1-R-5G4

5G4

0.9

1.2

15.2

360

MTX400-1RMZ1-R-6C1.5

6×1.5

0.7

1.2

12.7

240

MTX400-1RMZ1-R-7C1.5

7×1.5

0.7

1.2

12.7

260

MTX400-1RMZ1-R-8C1.5

8×1.5

0.7

1.2

15.5

340

MTX400-1RMZ1-R-10C1.5

10×1.5

0.7

1.3

16.2

390

MTX400-1RMZ1-R-12C1.5

12×1.5

0.7

1.4

16.9

440

MTX400-1RMZ1-R-16C1.5

16×1.5

0.7

1.4

18.6

550

MTX400-1RMZ1-R-19C1.5

19×1.5

0.7

1.5

19.7

620

MTX400-1RMZ1-R-24C1.5

24×1.5

0.7

1.6

22.9

800

MTX400-1RMZ1-R-5C2.5

5×2.5

0.7

1.2

12.9

290

MTX400-1RMZ1-R-7C2.5

7×2.5

0.7

1.2

14.6

390

MTX400-1RMZ1-R-12C2.5

12×2.5

0.7

1.4

18.7

610

MTX400-1RMZ1-R-19C2.5

19×2.5

0.7

1.5

21.8

870

MTX400-1RMZ1-R-24C2.5

24×2.5

0.7

1.6

25.6

1100

MTX400-1RMZ1-R-27C2.5

27×2.5

0.7

1.7

26.1

1200

MTX400-1RMZ1-R-37C2.5

37×2.5

0.7

1.9

29.2

1560
